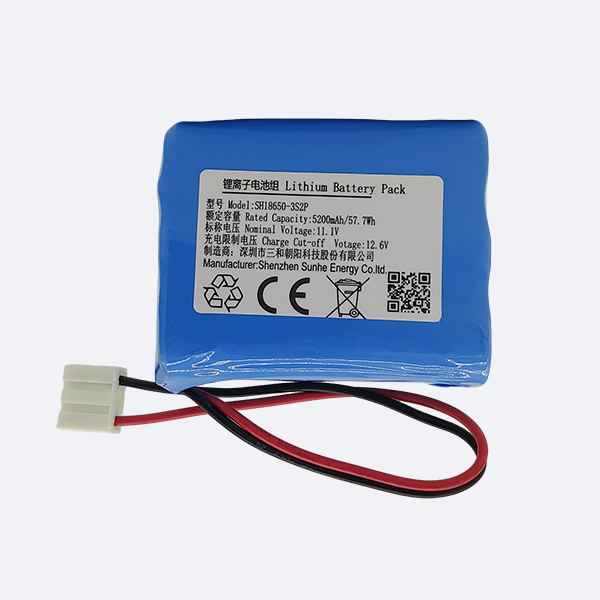

Model SH18650-3S2P · Rechargeable Li-ion Battery Pack (3S2P) · 11.1V 5200mAh 57.7Wh
Battery Information / 电池信息
Rechargeable Li-ion Battery Pack (3S2P) / 可充电锂离子电池组（3 串 2 并）
| 型号 / Model | SH18650-3S2P（18650-3S2P-5200mAh，3S2P 组合） |
| 标称容量 / Rated Capacity | 5200mAh（0.5C 放电，最小 5150mAh） |
| 额定能量 / Rated Energy | 57.7Wh |
| 标称电压 / Nominal Voltage | 11.1V |
| 充电限制电压 / Charge Voltage | 12.6V |
| 放电截止电压 / Discharge Cut-off Voltage | 8.25V |
| 化学物质 / Chemistry | Li/Ni/Co/Mn/Natural graphite/Cu |
| 最大持续充电电流 / Max. Continuous Charge Current | 5A（标准 0.5C / 2600mA） |
| 最大持续放电电流 / Max. Continuous Discharge Current | 5A（峰值 10A / 5s） |
| 内阻 / Internal Resistance (AC 1kHz, 25℃) | <120mΩ |
| 重量 / Weight | 280g±1g（规格上限 ≤310g） |
| 外形尺寸 / Dimensions | 38.5 × 57.5 × 70.5 mm（厚 × 宽 × 高，Max），引线 160±5mm |
| 连接器 / Connector | HX50004-3Y（UL1007 AWG18#，红黑线） |
| 保护板 / Protection Circuit (PCM) | UL 认证保护板：CW1244ALBS + CW1051ALCM + AGM405A×2 + NTC 10K（B=3435）+ 12A 三端保险丝；过充 / 过放 / 过流 / 短路 / 高低温保护 |
| 有害物质 / Hazardous substances（除汞、镉、铅外） | 无 / None |
| 关键原材料 / Critical raw material | Li 2.3%，Ni 8%，Co 2%，Mn 3%，天然石墨 / Natural graphite 10%，Cu 5–8% |
| 灭火剂 / Usable extinguishing agent | 水基灭火器（干粉灭火器可用）/ Water-based (dry powder also acceptable) |
| 制造商 / 生产厂 Manufacturer / Factory |
深圳市三和朝阳科技股份有限公司 / Shenzhen Sunhe Energy Co., Ltd. |
| 生产地址 Manufacturing Address |
中国广东省深圳市坪山区龙田街道莹展工业区 A 栋 2 楼 201 Room 201, 2nd Floor, Block A, Yingzhan Industrial Zone, Longtian Street, Pingshan District, Shenzhen, Guangdong, China |
| 制造商网址 Manufacturer's Website | www.sunhetech.com |
| 制造商电子邮箱 Manufacturer's Email Address | Xuxiaodong@sunhetech.com |
| 规格书编号 / 版本 Specification No. / Revision | SH-SP-3205 / Rev. A6 |
| 制造日期 / Date of Manufacture | 2026 年 4–6 月 / Apr–Jun 2026 |
三和朝阳尚未在欧盟成员国境内直接开展废旧电池回收业务。来自客户的废旧电池及不良品电池均由公司统一收集，并交由具备资质的第三方按当地法规合规处置。
SUNHE has not yet carried out waste battery collection directly within EU member states. Waste and defective batteries returned by customers are collected by SUNHE and handed over to licensed third parties for compliant treatment under local regulations.
终端用户请按 (EU) 2023/1542 要求，通过当地分类回收点或生产者责任组织（PRO）体系交回废旧电池，切勿混入生活垃圾。
End users shall return waste batteries through local separate collection points or PRO (producer responsibility organisation) schemes in accordance with (EU) 2023/1542, and must not dispose of them as household waste.
废旧电池随意丢弃易造成电解液渗漏，重金属渗入土壤水源，污染水土；有害物质经食物链累积，会损害人体神经系统、肾脏等器官，危害身体健康。
Improper disposal causes electrolyte leakage. Heavy metals infiltrate soil and water to pollute the environment. Harmful substances accumulate through the food chain, damaging the human nervous system, kidneys and other organs, endangering physical health.
此电池不可当作生活垃圾丢弃，请单独分类回收 / Do not discard the battery with household waste, recycle separately.
在 25°C 下，以 0.5C 恒流恒压充电至 12.6V / 0.5C 放电至 8.25V 进行循环，容量保持初始容量的 80% 以上时，循环次数 ≥500 次。
≥500 cycles at 25°C, 0.5C charge to 12.6V / 0.5C discharge to 8.25V, until capacity falls to 80% of the initial capacity.
锂 ≥50%，钴 / 铜 / 镍 ≥90%
Li ≥50%, Co / Cu / Ni ≥90%
| 产品类别 Product category | 便携式锂离子电池 / Portable lithium-ion battery |
| 适用法规 Union harmonisation legislation | (EU) 2023/1542 — Batteries and Waste Batteries |
| 协调标准 Harmonised standard applied | EN 62133-2:2017（18650-3S2P-5200mAh 符合 / comply with） |
| 进口商 Importer | CASH PISCINES France, 9 Avenue de la Grande Semaine 33700 Mérignac, FRANCE |
| 声明方 Declared by | Shenzhen Sunhe Energy Co., Ltd.（自我声明，sole responsibility） |
| 签发地点与日期 Place and date of issue | Shenzhen, China · October 15, 2026 |
完整声明文件及电池数据表见下方下载区。 / Full declaration and battery data sheet are available in the download section below.
